Rotor Pick-up Sensor



Hall-effect sensor



Hall-Effect Pick-up sensor for rotor tach, typically used to count ring gear teeth.

Targets (gears) made from low carbon, cold-rolled steel, provide best signal.

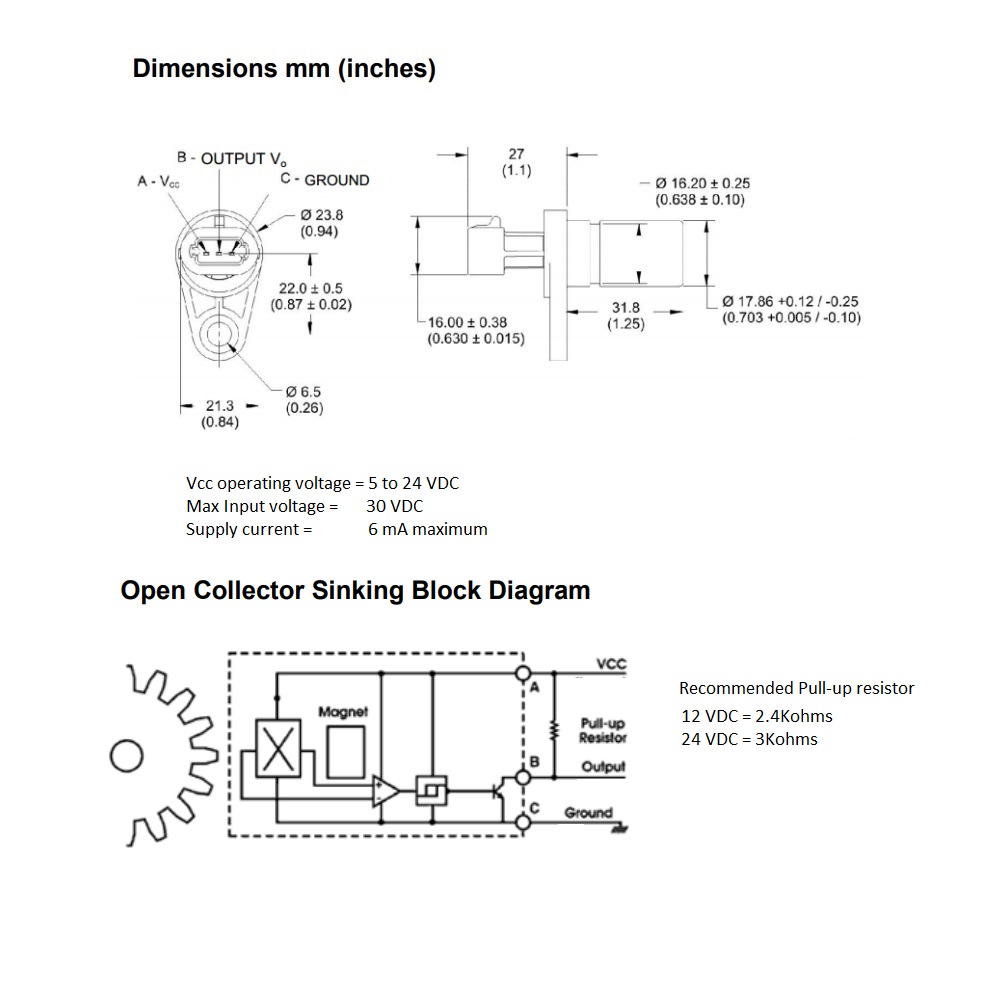

3-wire. 0VDC /+12VDC / Signal out

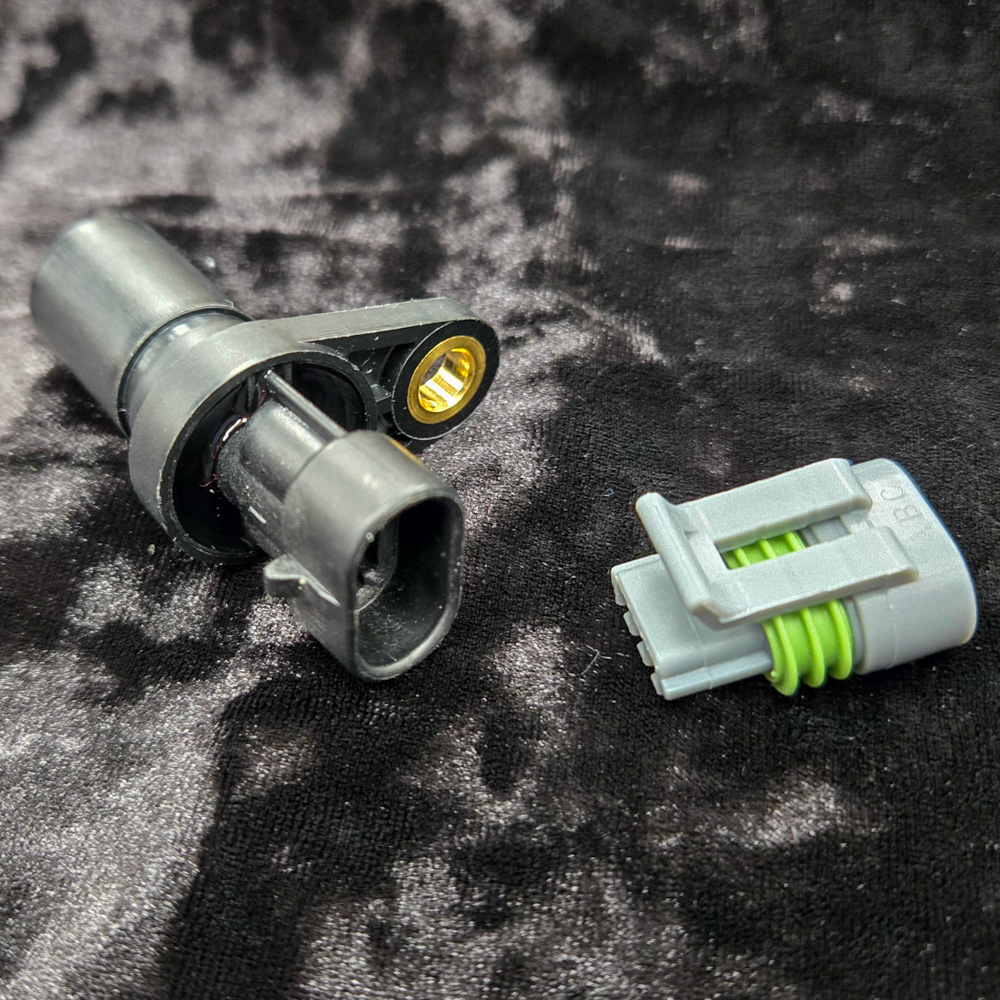

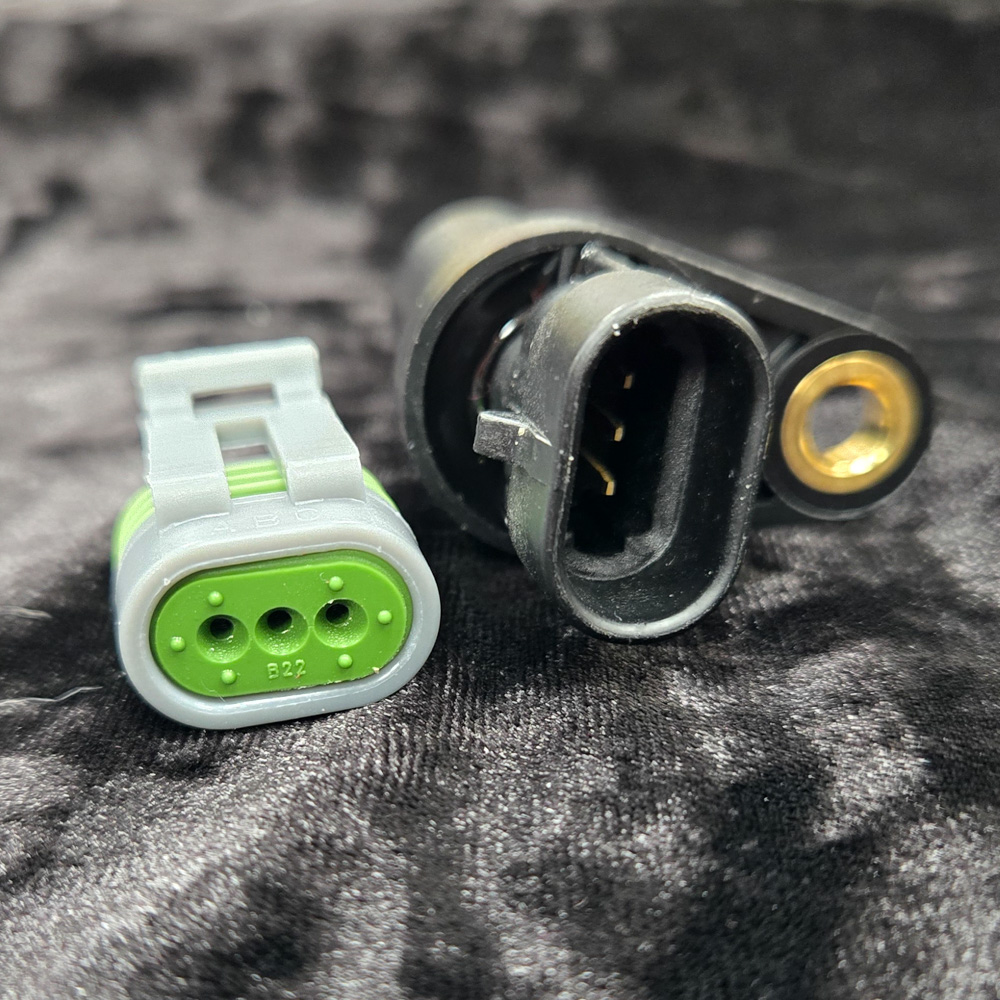

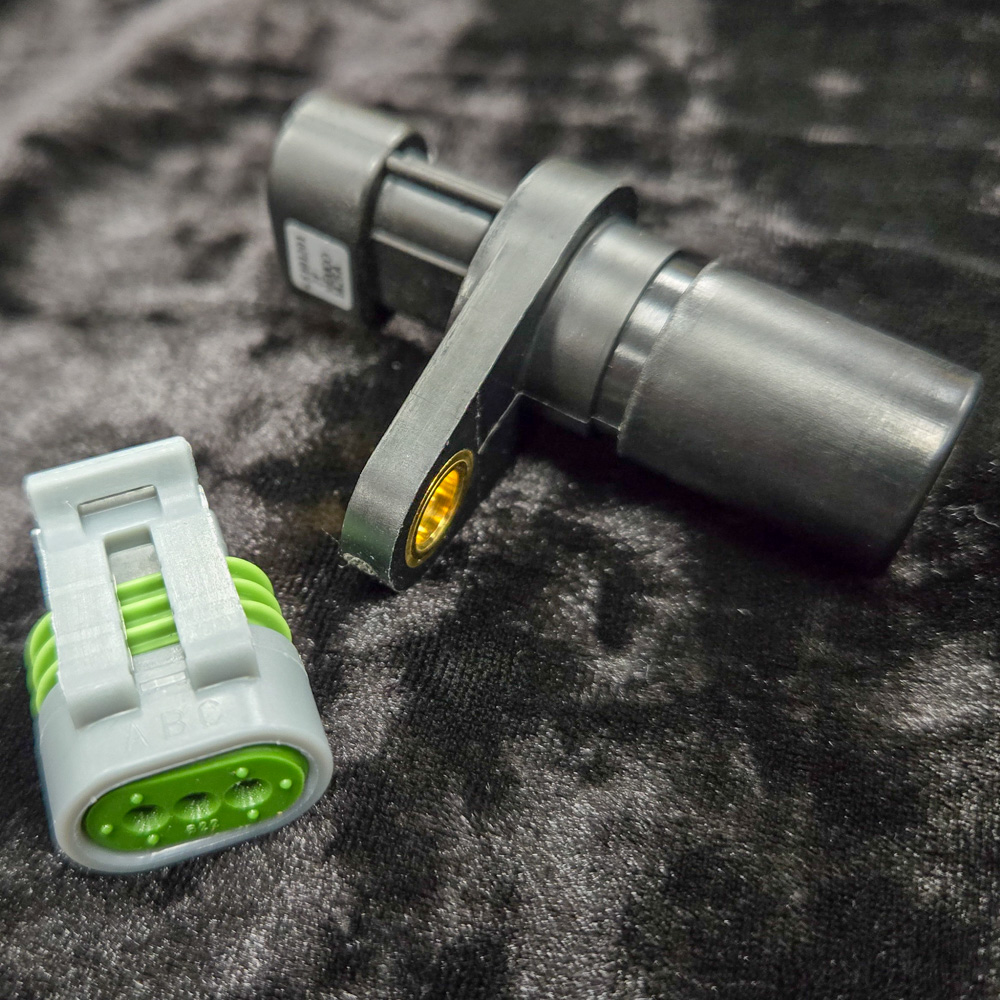

Can be purchased with optional weather-proof Deutsch connector

**Gyro Technic rotor heads come with spacer and bolt ready to mount this unit!

Additional information

Weight .07 lbs
Dimensions 2 × 1 × 1 in
