Tall Tail





Beautifully designed tall tail system.

Same as used on our VX-1 and VX2 Gyroplanes

Weight: 14.8 lbs

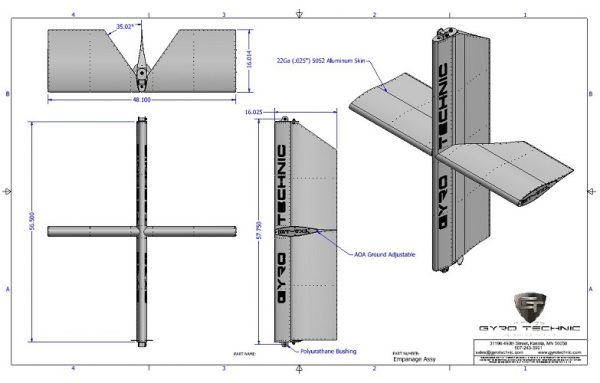

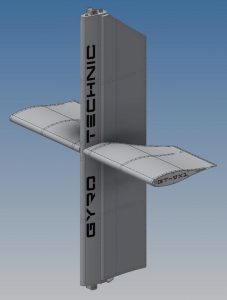

Our 56.5″ tall tail section includes a stationary leading edge with an independent rudder section. The 48″ wide horizontal stabilizer is (ground) pitch adjustable.

The use of our tall-tail design provides many benefits:

  • Virtually eliminates any yaw tendencies from propeller slipstream.
  • Cannot “Barn door” like a full flying tail.
  • The morphing airfoil shape provides more rudder authority with less motion.
  • Secure mounting system
  • Much lower swinging mass than in a full-flying system.
  • No chance of prop strike!

-See assembly video here-

Additional information

Weight 60 lbs
Dimensions 62 × 23 × 3.5 in
