$138.15

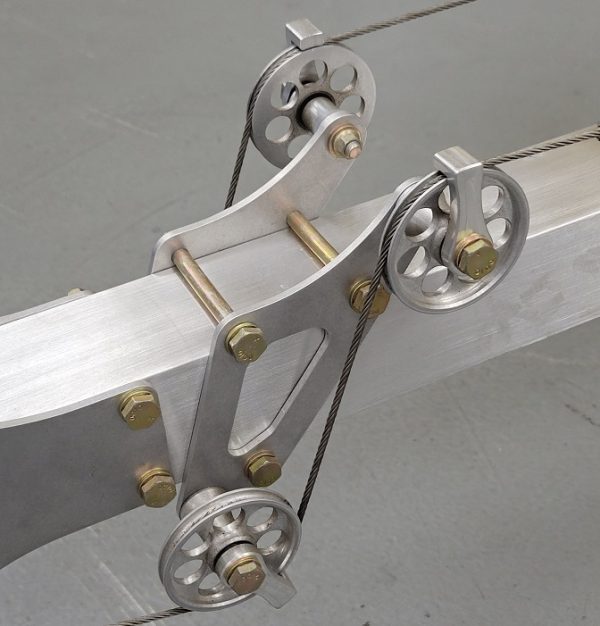

Cable pulley offset assembly
Cable pulley offset assembly ready to mount on your 2″ square tail boom.
Beautifully CNC-machined 6061-T6 aluminum.
Includes: 4 pulleys, ball bearings, retainers, conical spacers, bolts, nuts, washers, and side plates.

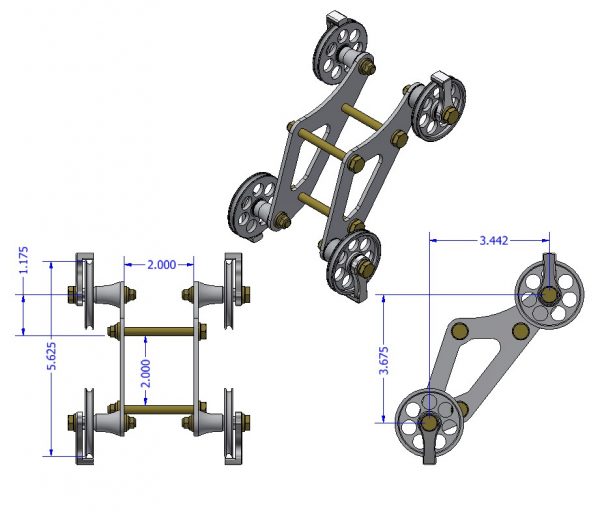

Provides a 5-5/8″ offset to your cable position.
Get those cables away from the propeller!
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Mounting Thickness: | .062", .125", .187", .250" |
I am working on the assembly now, and, as predicted, the parts fit on the 1st try every time. A VERY enjoyable experience so far. No corner has been cut, and the attention to detail is 2nd to none! Thank You! I cannot wait to fly my Gyro Technic! - Jon Louis (Mankato, MN)
