1″ OD x 1/8″ Wall – Tube Assemblies


Pricing

$35.00



1″ OD Diameter x 1/8″ wall (Dimension “A”) custom tube assembly

Select approximate length for pricing

Actual length desired *See picture below* (Must fall in range selected above)

Qty:

Description

1″ OD x 1/8″ Wall – Tube assemblies made to order:
* 1” Dia x .125” wall, brushed finish, 6061-T6 aluminum tube.

* Heavier wall (.125″) perfect for landing gear drag-struts, ect:
* Multiple rod end sizes available. (Right-hand thread)
* All hardware included.

Allow 1 week for delivery.

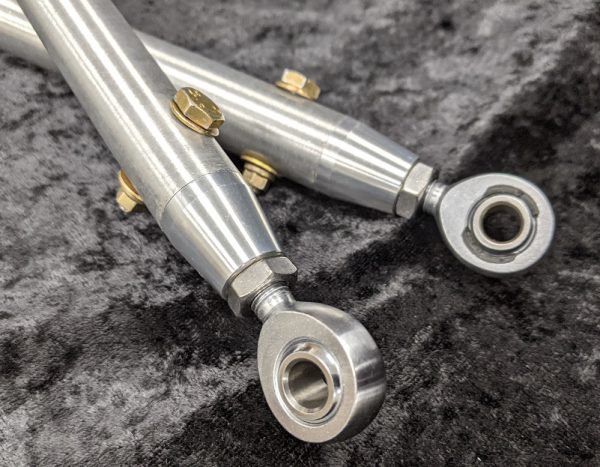

Each assembly will come as shown below including:
Custom length tube (Drilled), Tube end fittings (2), Rod end bearings with jam nuts (2), cross-tube attachment bolts (AN)

Control Tube Assy



*Note: tube length will be sized so that when assembled, 1/4” of thread on each rod end bearing will be visible. This means that the total length of the assembly can be adjusted + – 1/2” (1” of adjustment total)

Additional information

Weight .75 lbs
Dimensions 42 × 1 × 1 in
Tube Options

A (3/4"x.062"), B (5/16"-24 Chromoly), A (3/4"x062"), B (3/8"-24 Chromoly), A (1"x.125"), B (5/16"-24 Chromoly), A (1"x.125"), B (3/8"-24 Chromoly), A (1"x.125"), B (1/2"-20 Carbon Steel)
